C002332_15_CR3_User_Manual 20

Save Settings

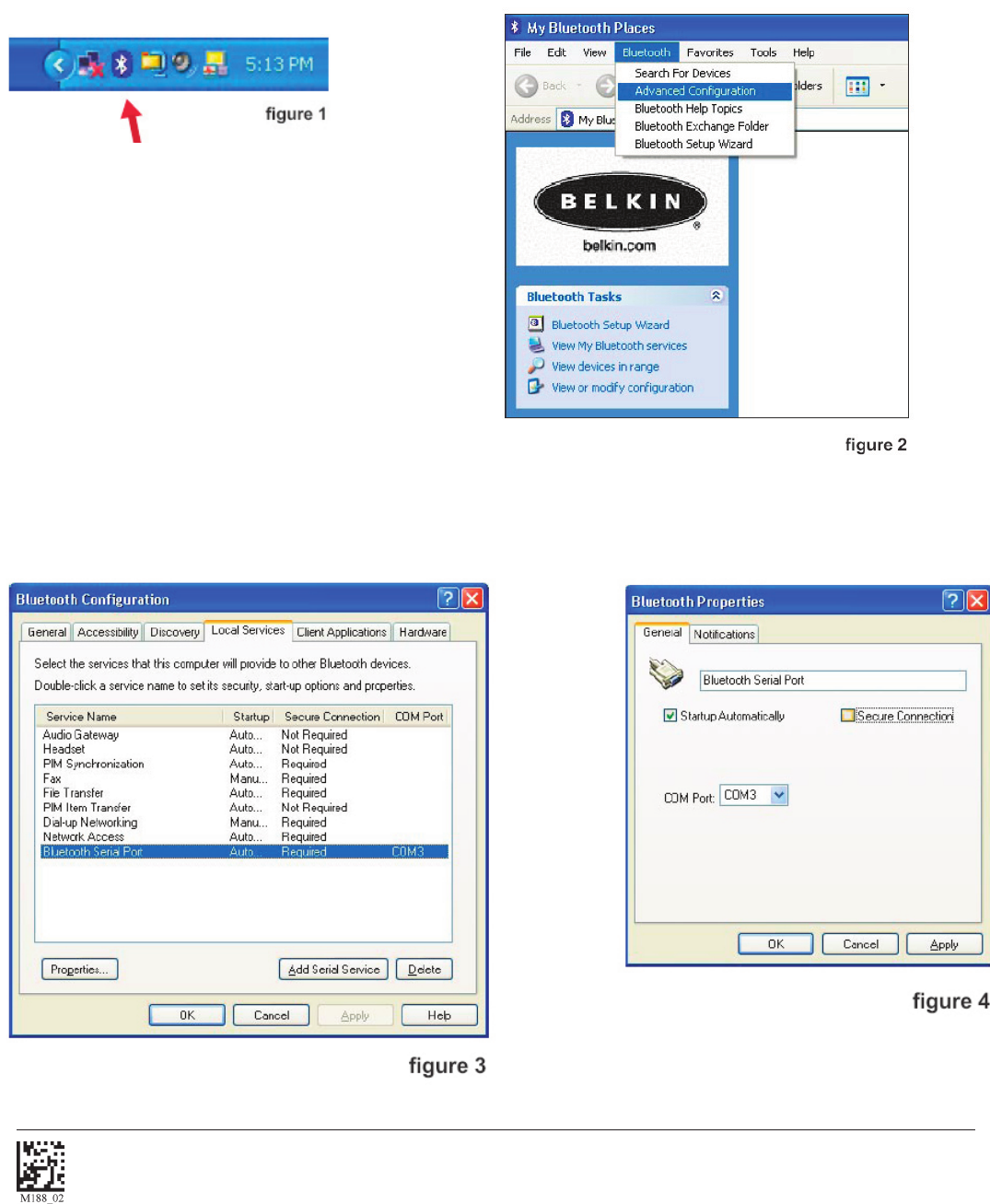

1.9.7 - Conguration for Belkin Bluetooth Manager Software (Version 1.4.2.10)

In this version of the Belkin Bluetooth Manager software, you must disable the authentication feature to connect a CR3.

Follow the steps below:

1. Double click on the Bluetooth icon in the system tray. In the My Bluetooth Places Screen, select Advanced

Conguration.

2. Select the Local Services tab and double click on the Bluetooth Serial Port. Inder the General tab unselect the

Secure Connection box. This disables the encryption feature and allows the CR3 to connect to the Bluetooth

adapter. Click Apply.
