C002332_15_CR3_User_Manual 55

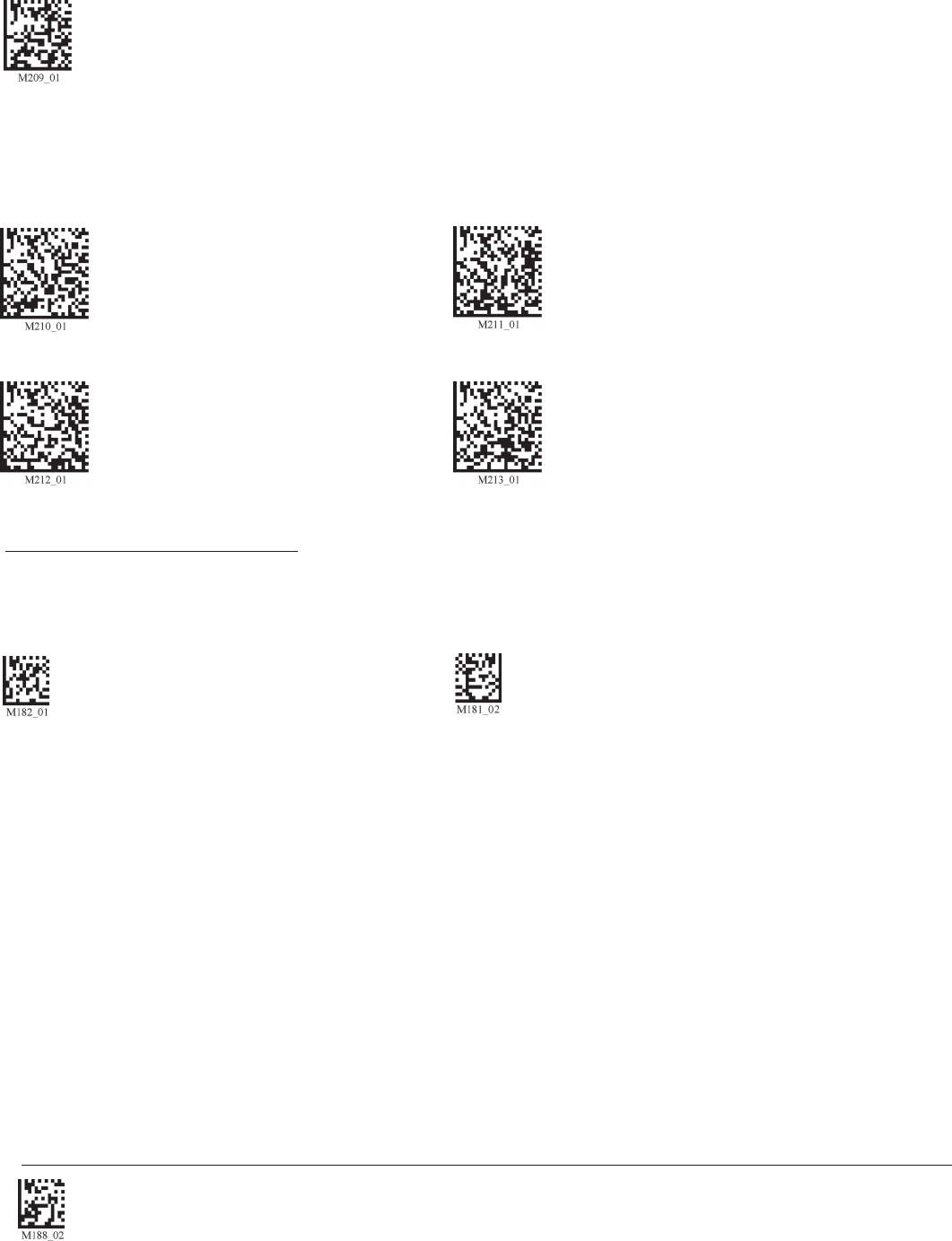

Save Settings

1-Dimensional Codes ONLY (1024 x 200 pixels)

Caution: It may be more difcult to read other codes while in this setting. You must have the

reader farther away than normal.

Small 2-Dimensional Codes

(480 x 480 pixels) Medium 2-Dimensional Codes (512 x 512 pixels)

Large 2-Dimensional Codes (640 x 640 pixels) Reset to Default Setting (1024 x 640 pixels)

Users may optimize the CR3 decode zone if their application only requires one bar code format. If the size and density of

the bar codes to be scanned are consistent, please select the setting below that best describes your environment.

5.3 - Mirror Decoding

Scan the following codes to enable/disable the mirroring feature:

On Off (Default)

Note: The Mirroring feature allows the CR3 to read codes as they are seen through a mirror (inversed 180°). If

the Mirroring feature is enabled, non-mirrored reading ability will be disabled.
