C002332_15_CR3_User_Manual 21

Save Settings

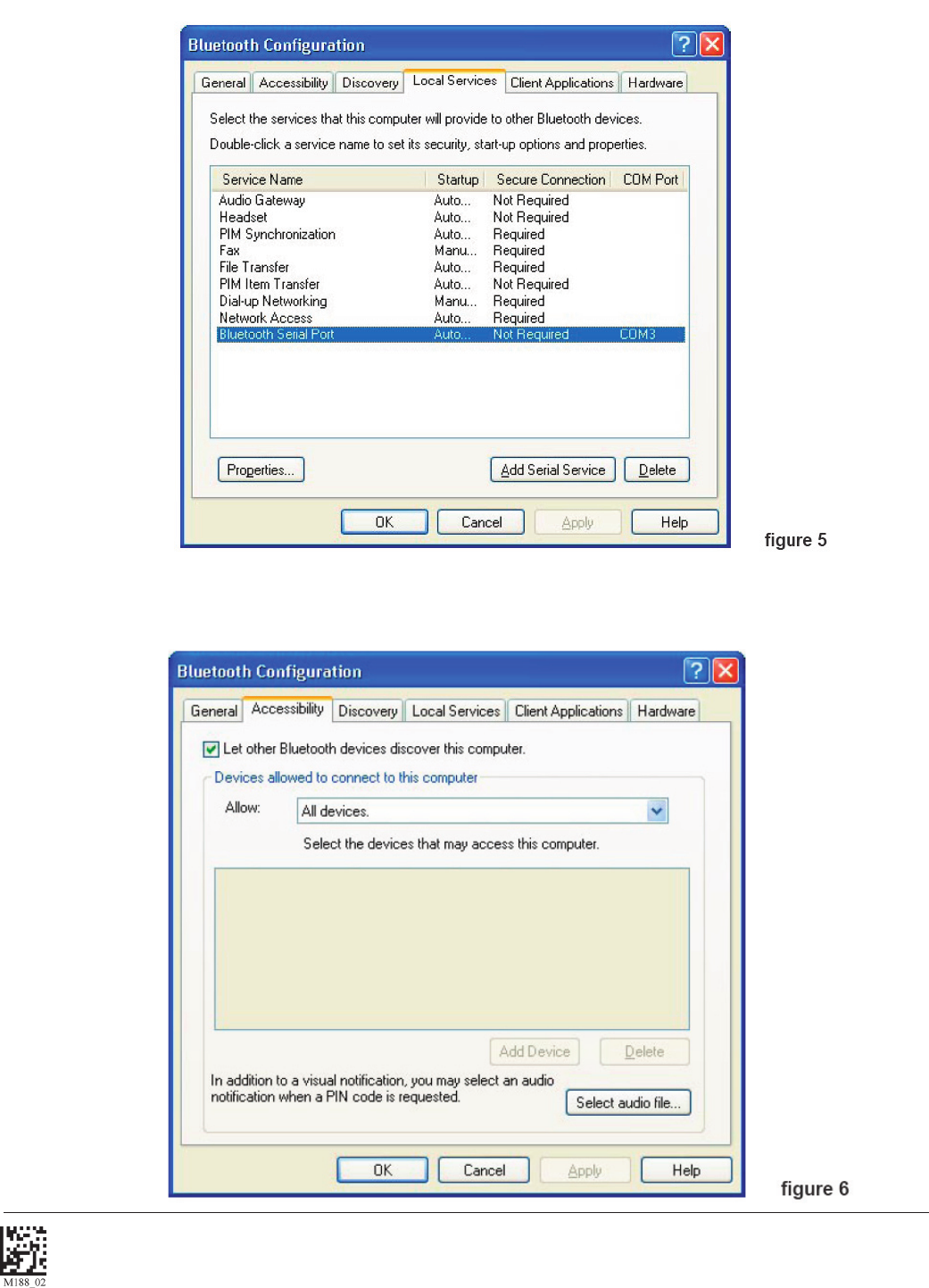

4. Open the “Accessibility” Tab and verify that “All Devices” are allowed to connect (this is the default setting). You

should now be able to connect your CR3.

1.9.7 - Conguration for Belkin Bluetooth Manager Software (Continued)

3. Your local service Bluetooth Serial Port prole should now read “Not Required”
